Console Footprints & Dimensions: Choosing 72, 84, or 96 for Your Control Room
- Axel Trujillo
- Mar 13
- 4 min read
Updated: 4 days ago
Why Footprint Decisions Drive Mission Outcomes
In 24/7 operations, layout determines operator reach, situational awareness, walking distances, and serviceability. The Sustema Transit Linear & Cockpit platforms offer standard widths and depth profiles that scale from compact positions to high‑density workstations—so you can match the workstation to the mission, not the other way around.
Standard Widths: 72", 84", 96" (with limited 48"/60")
Sustema provides three primary widths—72", 84", 96"—with select models also available in 48" and 60" for constrained rooms or specialty roles. Wider frames support additional technology and more complex display stacks without crowding the operator’s primary reach zone.
Width | Best For | Typical Advantages |
72" | Single‑role stations, narrow bays | Smaller footprint; easier to fit in legacy rooms |
84" | Balanced setups (PSAP call‑takers, grid operators) | Extra surface + cabinet capacity without a large jump in space |
96" | Supervisory or multi‑system operators | Maximum equipment space; more flexible monitor layouts |
48"/60" (limited) | Tight alcoves, specialty positions | Minimal footprint where building geometry or egress limits apply |
Depth Profiles: 36‑30, 36‑36, 36‑42
Depth is the hidden variable that determines CPU capacity, cable routing, and reach comfort. Transit consoles support multiple depth profiles—36‑30, 36‑36, 36‑42—so you can scale for equipment density while protecting operator ergonomics and service access.
Depth Profile | When to Choose It | What It Enables |
36‑30 | Slim equipment loads; compact rooms | Keeps operator close to displays; conserves aisles |
36‑36 | General‑purpose control‑room setups | Balanced reach vs. cabinet/CPU volume |
36‑42 | High CPU density or extensive cabling | More airflow/cooling options; easier tech access |
How Shape Affects Footprint: Linear vs. Cockpit
Linear configuration:
Straight runs that scale quickly across rows and pods; excellent for Back‑to‑Back configurations in utilities NOCs and control room dispatch furniture.
Cockpit configuration:
Curved, operator‑centric geometry that supports the focal‑adjustment monitor platform (Cockpit only), allowing forward/back and height adjustments to optimize viewing distance. It can be arranged in closed and open pod configurations.
Related reads: Space planning and monitor mounting options for control room furniture.
Equipment Density, Cooling & Cabinets: Why Depth Matters

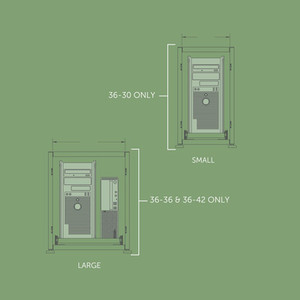

Transit consoles can be configured with 2 or 3 heavy‑duty cabinets featuring lockable, ventilated doors. For high heat loads, add low‑noise thermostatic fans. If you’re planning sliding CPU shelves, box‑file drawers, or center‑bay equipment, the 36‑36 or 36‑42 depths typically provide better airflow paths and service clearances.
Related read: Technology integration in control room workstations.
Display Strategy & Reach: Arms, Mounts, and Large Screens
Articulated monitor arms support horizontal, vertical, and multi‑level arrays, including large monitors up to 50". For dense visual stacks (e.g., PSAP call‑taking + CAD + video), consider Cockpit with focal adjustment or Linear at 84"/96" widths to preserve ergonomic viewing distances.
Related reading: Monitor mounting options.
Power & Data Routing: HD vs. Lite Walls and Aisle Planning
Footprint selection should anticipate power/data entry points. HD walls provide integrated horizontal and vertical raceways with removable finishing panels; Lite walls offer a slimmer profile with instant outlet access—both result in cleaner surfaces and faster field service. Wider or deeper footprints can simplify raceway capacity.
Related reading: Wall systems for cable management in mission critical environments.
Ergonomics & 24/7 Comfort Considerations
Depth and width choices should pair with PES 360 options—task/status lighting, base heaters, and surface‑integrated cooling fans—to maintain alertness across shifts. Sustema designs incorporate ANSI/HFES and ANSI/BIFMA considerations referenced in product documentation to support operator comfort in 24/7 duty.
Explore our Personal Environmentall System.
Selection Checklist: Pick the Right Width & Depth (Fast)
Mission Profile: PSAP/9‑1‑1 & EOC → Cockpit or Linear 84/96 with Sustrack + articulated arms; Utilities → Linear 84/96 with HD walls.
Space Envelope & Egress: validate door swings, columns, and aisle widths; consider 72" or limited 48/60" where constrained.
Equipment Inventory: for high density/heat, prefer 36‑36 or 36‑42 with fans and sliding CPU shelves.
Display Stack: for multi‑level arrays and up to 50" displays, ensure chosen width/depth keeps controls in primary reach.
Cable Topology: structured separation of power/data → HD walls; tight spaces → Lite walls with adequate maintenance access.
Operator Comfort: add PES 360 features based on shift feedback and ambient conditions.
Example Configurations
911 Dispatch & Call‑Taking Position (Compact Performance): 84" × 36‑36; Sustrack + articulated arms; PES 360 task light; HD walls in tight aisles. Explore the case study.
Mining monitoring operations center: 96" × 36‑42; electrical raceways; hanging CPU; integrated retractable monuments. Explore the full installation.
Resources & Next Steps
Explore the feature deep‑dives:
Ready to start planning your next control room?
Book a space‑planning consultation or request a quote. We will help you build a control room that meets your special needs and requirements.
