Every second counts in a PSAP, EOC, or grid control room. Operators must synthesize alarms, video, GIS, SCADA, and voice systems under fatigue‑prone conditions.
The console is the human‑machine interface that either enables focus—through ergonomics, cable discipline, thermal comfort, and display clarity—or erodes it.Sustema’s Transit Linear & Cockpit platforms are engineered for 24/7 duty cycles, balancing serviceability, operator comfort, and technology integration so your teams can sustain performance shift after shift.
This guide explains the major decisions you’ll make—form factor, footprints, walls, mounting, environment controls, finishes, and branding—with links to deep‑dives on each topic.
Linear vs. Cockpit: Choosing the Right Form Factor
Linear consoles provide straight, modular spans that scale quickly across rows and pods.
Cockpit consoles wrap the operator with a curved primary reach, improving sightlines in dense display setups and enabling a focal‑adjustment monitor platform (Cockpit only) for rapid depth/height tuning of monitors.
Choose Linear when you need fast replication, long supervisory sightlines, and mixed pods (e.g., back‑to‑back banks in a utility control room).
Choose Cockpit when operators manage larger display counts or need rapid focal adjustments to reduce eye strain during extended surveillance or dispatch tasks.
See also; monitor mounting options.
Specifications at a Glance
Standard widths: 72", 84", 96" (limited models also in 48" and 60")
Depth profiles: 36‑30, 36‑36, 36‑42 (choose by equipment density & reach)
Monitor configurations: horizontal, vertical, multi‑level, and large displays up to 50"
Cabinets: 2 or 3 heavy‑duty bays with lockable, ventilated doors; optional low‑noise thermostatic fans
Storage modules: box‑file drawers (6" & 12"), sliding CPU shelves (side & center)
Wall systems: HD (integrated power/data raceways) and Lite (slimmer, instant outlet access), both with removable finishing panels
Personal Environment System (PES 360): localized task/status lighting, base heaters, surface‑integrated cooling fans (optional)
Finishes & edging: laminates, metal powder‑coat options; edging in wood (MF2/MF4), urethane (MT1/MT6), T‑molding, or PVC
Branding & privacy: multiple end gable shapes; engraved or sticker logos; optional LED‑lit logo panels
Space Planning for Public Safety & Utilities
Layout determines communication flow, supervisory oversight, and cable pathways. Sustema supports multiple pod archetypes you can repeat and mix:
Back‑to‑Back (mixed shapes): high‑density rows for utilities NOCs and PSAP floors
Open “T” / Open “X”: collaboration hubs for incident management cells
Closed Pods: higher privacy for specialized analysis or critical switching tasks
Start with footprint and depth. Match 72/84/96‑inch widths and 36‑30/36‑36/36‑42 profiles to team size, monitor loads, and CPU density; preserve clearances for egress and aisle service.
Learn more: Space planning and footprint dimensions for control room furniture.
Power, Data, and Cable Discipline: Wall Systems
Cable chaos compromises uptime and safety. Transit wall systems hide complexity and speed service:
HD Walls: integrated power & data raceways route horizontally and vertically with clean removable finishing panels for service access.
Lite Walls: a thinner profile with instant outlet access, also using removable panels for a tidy, field‑serviceable finish.
Deep‑dive: Wall systems for control room furniture
Technology Integration: Cabinets, Cooling, and Access
Mission‑critical consoles must secure equipment, manage heat, and enable fast swaps:
Heavy‑duty cabinets: 2–3 bays with lockable, ventilated doors; add thermostatic fans for high‑heat CPU loads.
Storage modules: box‑file drawers for operator materials; sliding CPU shelves in side/center cabinets for tool‑free access.
Sizing nuances: Linear 72 vs. 84/96 and Cockpit depth variants affect cabinet capacity—size to your device stack.
Deep‑dive: Technology integration in control room furniture.
Display Strategy: Arms, Mounts, and Focal Adjustment
Operators in PSAPs and utilities must move from overviews to details without losing posture or time:
Articulated arms support horizontal, vertical, and multi‑level arrays; large monitors up to 50".
Mounting types: Bolt‑Thru for clean cable management and stability; Clamp for flexible repositioning; Sustrack for rapid reconfiguration and accessory mounting.
Focal‑Adjustment Monitor Platform (Cockpit only): slide displays forward/back and tune height for visual comfort; mount task/status lighting and powerbars on the platform.
Deep‑dives: Monitor arms and monitor mounting options.
Operator Comfort: Personal Environment System (PES 360)
Shift longevity depends on thermal and visual comfort. PES 360 empowers each operator to personalize:
Task light & status light at the arm post or surface
Base heaters for lower‑body warmth
Surface‑integrated cooling fans for targeted upper‑body airflow
Designed with ANSI/HFES ergonomics and ANSI/BIFMA considerations in mind to support posture and fatigue‑mitigation in 24/7 environments
Deep dive: Personal environment system for control room furniture.
Finishes, Edging, and Color: Durability Meets Brand
In 24/7 rooms, surfaces must resist wear, clean easily, and control glare. Options include:
Edging: Wood MF2/MF4, Urethane MT1/MT6, T‑molding, PVC—choose by durability, look, and tactile edge comfort.
Surfaces & panels: broad laminate palette (solids + woodgrain).
Metal components: powder‑coat options to coordinate with interiors.
Color guidance: pair darker trims with mid‑tone surfaces to minimize visual noise; consider ambient light to manage reflectivity/glare.
Deep‑dives: Color options and finishing edges for control consoles.

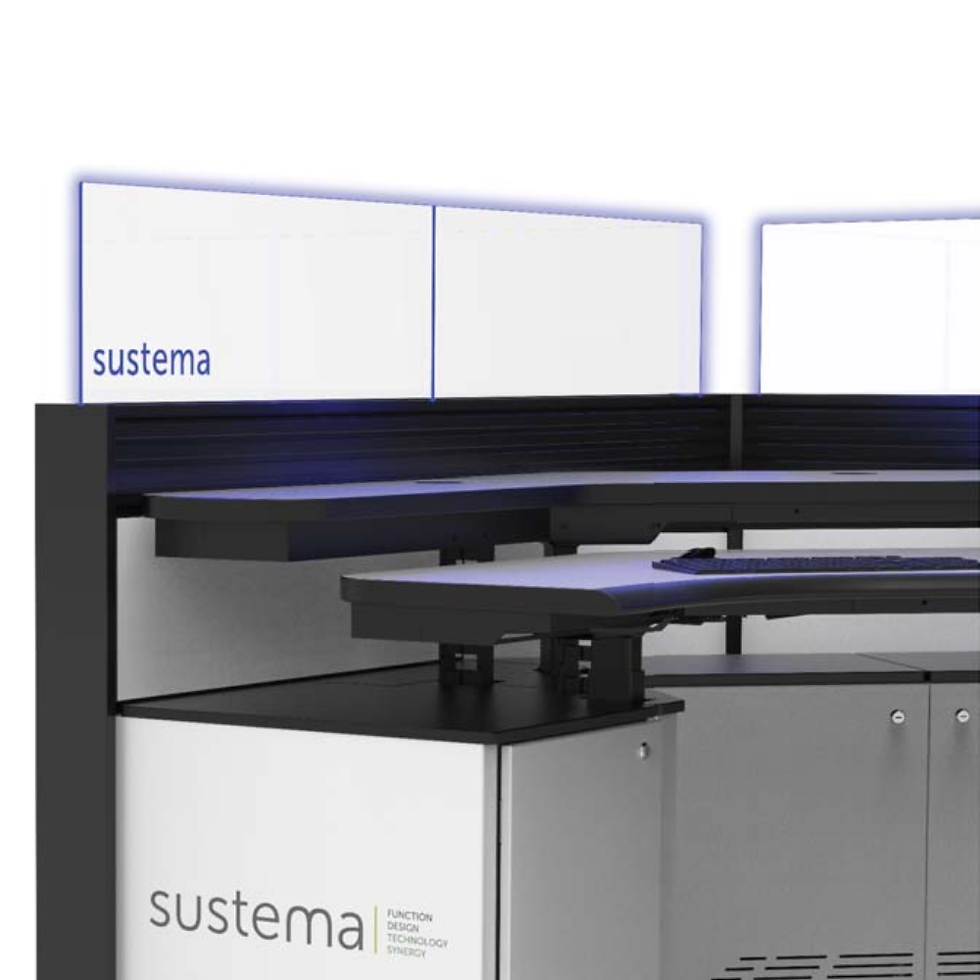

End Gables & Branding: Privacy, Polish, and Pride
End gables boost privacy, block lateral glare, and complete the installation. For brand presence, add:
Logo engraving on plexiglass or glass with optional LED illumination
Vinyl stickers on side cabinets or panels
Multiple gable geometries (angled, 90°, with/without glass) to fit sightlines and space
How to Choose: A Field‑Proven Checklist
Mission profile: PSAP/9‑1‑1 → favor Cockpit with focal‑adjustment, Sustrack, PES 360; Utilities (Grid/SCADA) → favor Linear with scalable pods and HD walls.
Space & footprint: start with 72/84/96 widths (48/60 limited); select 36‑30/36‑36/36‑42 depths; preserve aisles for serviceability.
Display plan: map horizontal vs. vertical sightlines; specify arms and mounts; validate support for large 50" displays.
Equipment & heat: count CPUs/network gear; select 2–3 cabinets with ventilated doors; add thermostatic fans for high‑load bays.
Power/data strategy: HD walls for integrated raceways and long runs; Lite walls for slimmer footprints with direct outlet access.
Operator comfort: add PES 360 elements (task light, heaters, cooling) per shift feedback and thermal mapping.
Finishes & brand: choose edging for durability/feel; align laminates & powder coats with room branding; add engraved/LED logo where visitor visibility matters.
Example Configurations
PSAP/9‑1‑1 Dispatcher (Cockpit)
Cockpit with focal‑adjustment platform, articulated arms, accessories (task/status light, cooling), custom cabinets with fans, mid‑tone surface with dark trim.
NOC Control (Linear)
Linear configuration, Bolt‑Thru mounts with 3 monitor arms for flexibility, 2 CPU enclosures per position, lite walls for raceways, neutral laminates to minimize glare, branding at row ends.
Power and utilites (Hybrid)
Mixed Open pods for collaboration.
Resources & Next Steps
Explore the feature deep‑dives:
Talk to an expert: Book a space‑planning consultation or request a quote. Fill out our contact form and a member of our team will be in touch.
